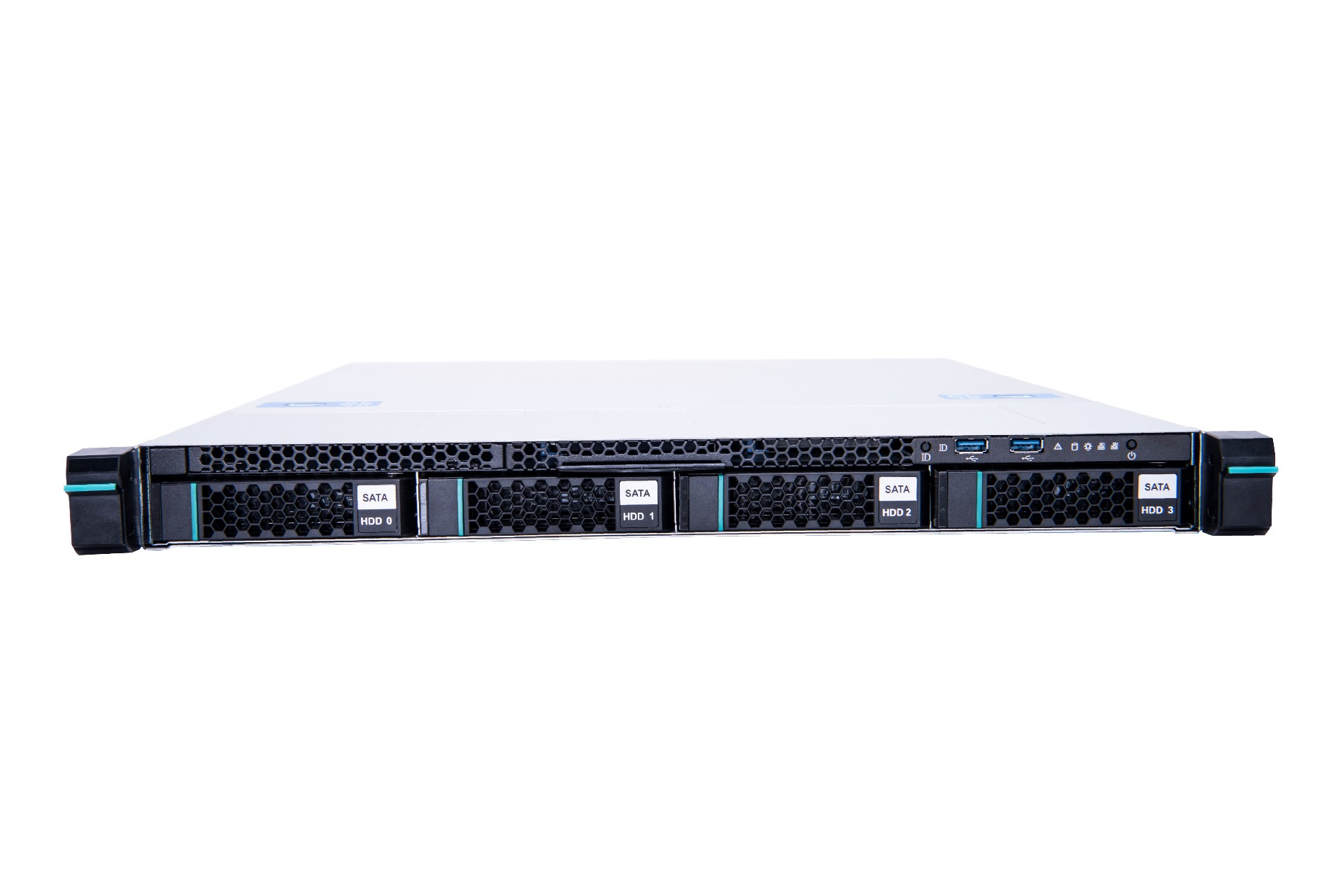

PR1280C4 is a single-socket high-performance departmental server, using Intel C242 chipset, supporting 1 LGA-1151 (Socket H4), IntelI3 8/9th generation processors, and Intel Xeon-E-2100/2200 series processors This model supports a maximum memory capacity of 64GB, standard supports 4 3.5-inch/2.5-inch SATA hot-swappable hard drives, can support 2 built-in 2.5-inch hard drives, and can flexibly expand a full-height full-length single-width PCI-E device . It is suitable for small and medium-sized network applications of small and medium-sized enterprises and users in education, government, military, postal, railway, finance and other industries. The server can act as an e-mail server, WEB server, gateway, small and medium database application server, print server, etc. in the network.
Powerleader single-socket C series server PR1280C4 is a new bus architecture that supports the original ecology to support 1 LGA-1151 (Socket H4), IntelI3 8/9th generation processors, and Intel Xeon-E-2100/2200 series processors. server. Adopt Intel DMI3 technology with faster transmission rate, higher bit width and transmission bandwidth; use single-chip bit width and DDR4 memory with more optimized frequency and power consumption;
Support hyper-threading technology, up to 16 threads when 8 cores;
Supportvirtualized device input/output
(VT-d)----Increasethe virtualization of device input/output on the basis of the previousvirtualized CPU, which can effectively improve the performance and efficiencyof the virtual machine;
Kernelacceleration mode 2 (Turbo Mode)
The kernelruns dynamically accelerated. The operation of the kernel can be turned on, offand accelerated as needed;
SupportIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2 instruction set;
Cachedesign----Three-level all-inclusive Cache design, L1 design is the same as Coremicro-architecture; L2 adopts ultra-low latency design, each core 256KB; L3adopts shared design, all cores on the chip shared.
IntegratedMemory Controller (IMC)----Moved from the chipset to the CPU chip, it supportsmulti-channel DDR4 memory. Compared with the previous generation, the memoryread delay is greatly reduced, and the memory bandwidth is greatly improved. upto three times.
DMI is apoint-to-point connection technology that replaces the front-side bus (FSB);DMI adopts the serial mode as signal transmission, and adopts LVDS (low-voltagedifferential signaling technology, which is mainly used for high-speed digitalsignal interconnection, so that the signal can be transmitted in hundreds ofMbps or more) signaling technology; reliability, practicality and applicabilityguarantee the high availability of DMI; the bandwidth of 20-bit wide DMI canreach an astonishing 25.6GB per second per connection, which is far fromcomparable to FSB .
Supports virtualized deviceinput/output (VT-d)----increases the virtualization of device input/outputbased on the previous virtualized CPU, which can effectively improve theperformance and efficiency of virtual machines. It provides a strong guaranteefor server integration, original data migration and security.
Accordingto the actual needs of users, provide the best configuration options.
Withthe processor Hyper Threading technology, it supports multi-threading andmulti-tasking mode. The processor integrates a DDR4 memory controller,providing a highly selectable memory solution. Provide IRST (RAID 0/1/10/5)function to meet the system's requirements for hard disk security, and consideruser cost requirements. Integrated Intel server-class dual 1000M networkadapters, support link aggregation and binding redundancy functions, suitablefor a variety of application requirements.
Supportquad-core/six-core/eight-core IntelI3 8/9th generation processors, IntelXeon-E-2100/2200 series processors, 4 DIMM memory slots can support up to 128GBUnbuffer DDR4 ECC 2666MHz memory, the standard system supports up to 6 SATAhard disk expansion slots (4 hot-swappable + 2 built-in). Provide 2 PCI-Einterfaces to provide expansion space for users.
The board providesTPM trusted module interface, users can choose according to their needs, andsupport Intel SGX (Software Guard Extensions) technology
Integrated BMC module, Chinese versionBIOS and BMC, support IPMI2.0, provide 1 RJ45 management network port, supportremote management, iKVM
PR1280C4 adopts a server motherboard based on Intel® C242 chipset, supports one LGA1151 IntelI3 8/9 generation processor, Intel Xeon-E-2100/2200 generation processor, the motherboard provides 4 memory slots, and supports up to 64GB DDR4 2666MHz ECC UDIMM; the motherboard naively supports six 6 SATA3 (6Gbps) hard disk interfaces. Integrated RAID controller, support low-cost RAID 0, 1, 10, high-reliability RAID5 (only windows OS) to improve data processing performance and data protection functions. Integrated dual Gigabit Intel server networkcard is very suitable for small and medium-sized enterprises. hosting platform.
It adopts short chassis design, which can be placed in network cabinets with a depth of 600mm and server cabinets with a standard depth; intelligent cooling system can effectivelyreduce noise pollution and create a constant temperature space for the cabinet; fully shielded anti-electromagnetic radiation, anti-interference, anti-static (EMI) design .
| | Technical Features: Host Performance |
|---|---|
| CPU | IntelI3 8/9th generation processor, Intel Xeon-E-2100/2200 series CPU (LGA 1151) |
| chipset | Intel® C242 Chipset Platform Controller Hub (PCH) |
| Intel® DMI speed | 8 GT/s DMI3 |
| RAM | DDR4 ECC/Unbuffered (SODIMM) 2666MHz RAM, up to 128GB |
| memory error detection | Fix single-bit errors, detect double-bit errors |
| hard disk | Supports 4 hot-swap 3.5/2.5-inch hard drives + 2 built-in 2.5-inch non-hot-swap hard drives |
| SATA RAID | Support RAID 0, 1, 10, 5 (Only Windows) |
| show | Aspeed AST2500 BMC |
| CD-ROM | One SATA interface thin optical drive |
| PCIE expansion slot | 2 PCI-E 3.0 x8 (in x16), |
| M.2 interface | 1 PCI-E 3.0 x4 M.2（2280/22110） |
| network card | Integrated InteI210-AT dual Gigabit high-speed Ethernet server card |
| manage | Integrated BMC module, Chinese version BIOS and BMC, support IPMI2.0, provide a 1000 Mbps RJ45 management network port, support iKVM, support remote management |
| keyboard | Usb Compatible with Usb2.0 |
| mouse | Usb Compatible with Usb2.0 |
| power supply | Standard 300W server single power supply, optional 450W1+1 redundant power supply |
| Extended performance | |
| Expansion slot | Supports one PCI-E device (full-height full-length PCI-E 3.0 x8 (in x16),) |
| Internal device interface | 2 USB3.0, 4 USB2.0, 6 SATA3.0 6Gbps interfaces, 1 TPM trusted module interface |
| External device interface | 1 VGA display port, 2 USB3.0 Type-A (front panel), 2 network ports, 1 COM, 1 RJ45 dedicated IPMI LAN port, 4 USB3.0 Type-A, (rear) |
| Strict system certification | |
| 1 | Windows Server 2012R2 |
| 2 | Windows Server 201664bit |
| 3 | Red Hat* Enterprise Advanced Server 6.9 _x86 64bit |
| 4 | Red Hat* Enterprise Advanced Server 7.3_x86 64bit |
| 5 | Red Hat* Enterprise Advanced Server 7.4_x86 64bit |
| 6 | Red Hat* Enterprise Advanced Server 7.5_x86 64bit |
| 7 | Ubuntu 16.04.3 |
| 8 | Ubuntu 16.04.4 LTS |
| 9 | Ubuntu 16.10 |
| 10 | Ubuntu 17.10 |
| Environment and Specifications | |
| ambient temperature | Operating 10°C to 35°C Non-operating –40°C to +70°C ambient |
| Relative humidity | Non-operating 95% non-condensing at 25°C to 30°C |
| Sound | In operation mode, the sound pressure measured in the lateral position is <50dBA; the sound intensity measured when the ambient temperature is <28°C is 6.2BA |
| electrostatic discharge | 15kv per Intel ambient temperature test specification |
| safety standard | CCC |
| power supply | |
| power supply | 300W server dedicated power supply |
| AC voltage/frequency | 110~240V/60/50Hz 6~3A |
| +5V | 1.0~ 15A |
| +12V | 0.4~25A |
| -12V | 0~ 0.5A |
| +3.3V | 0.5~21A |
| +5VSB | 0~2.5 |
| structure | |
| shape system | 1U rack type (with cabinet accessories) |
| high | 4.4CM |
| width | 43.0CM |
| depth | 55.0CM |
| weight | About 17KG (standard/gross weight) |
