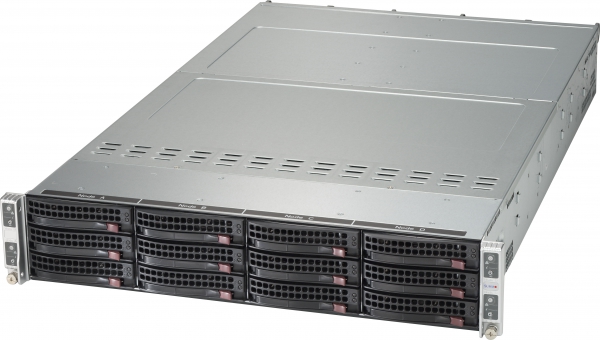

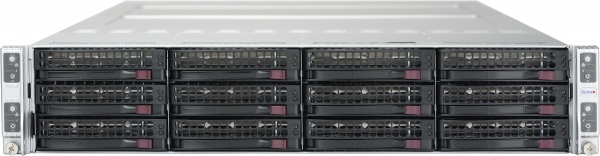

Powerleader 2U Four Star Server PR2740TP

Powerleader 2U four-node server architecture is market-proven, delivering exceptional throughput, storage, networking, I/O, memory, and processing power in a 2U form factor. Customers can address their most challenging IT needs with solutions that benefit from exceptional total cost of ownership (TCO).

Powerleader 2U four-node server solutions are designed to simplify deployment and maintenance, and are assembled to the highest quality to ensure continuous operation at maximum capacity. With Powerleader's 2U four-node server, customers in high-end enterprise, data center, HPC and cloud computing environments gain maximum competitive advantage from data center resources.

Functional features Application environment Technical specifications Related downloads Related products

Functional features

New compact "4 in 2U" server density

single 2U chassis is equipped with up to 4 half-widthdual - socket server nodes and 123.5 -inch hot- swap hard drives .

Shared powerand cooling system

2U four-node server with central cooling fan and 2 shared titanium (96%) hot-swappable power supplies.

Fullycompatible with the traditional data center environment

2U four-node server is suitable for the front and rear airflow cooling design of traditionaldata centers and standard 19 -inch industrial cabinets.

Simple to use

swappable server nodes,power supplies and disk drives enhanceavailability and ease of use.

Diverse localstorage

Standard support for SATA HDD , optional support for SAS 3008 and 3108 versions . Built-in DOMis supported .

Flexiblenetwork options

Each node supports a network expansion module (SIOM) for user flexiblenetworking options such as 1G, 10G, 25G, 40G or 100G. Supports 2 half-heightPCI-E 3.0 x16 expansion slots at the same time;

Application environment

High-density and performance-optimized compute nodes

Offers up to 4 dual-socket servers and high-capacity storage in a 2U rack, forming a flexible platform to power demanding HPC and scale-out workloads.

Enhanced energy efficiency, suitable for Internet , HPC and cloud computing

2U four-node server is Powerleader platform for supporting Internet , cloud computing, high-performance computing (HPC), service providers, and large scale-out computing server farms. The server focuses on providing data centers with a scale-out X86 server solution, while bringing new economics to data centers in terms of server density, power consumption, and thermal optimization and total cost of ownership. Design, 2U four-node servers require less rack space and consume less power and heat per server than traditional rack servers. The server can significantly reduce data center operating costs, simplify installation, and aggregate computing with a lower total investment .

Technical specifications

characteristic	PR2740T PTechnical Specifications
form	2U4 nodes
Number of processors	Per node :1/2
Processor model	Per node: support second generationIntel® Xeon® Scalable Processors (Cascade Lake/Skylake)
RAM	Per node:16 DIMMs; supports up to 4 TB ECC 3DS LRDIMM or RDIMM DDR4-2 933 MHz Supports Intel Optane DI MM
hard disk	Per node: Standard 3 * 3.5" SATA3 Hot-swap drive bays Optional support for SAS HDDs
Raidsupport	Optional support for RAID0, 1, 10, 5, 50, 6, 60, etc., RAID 2GB Cache;
Onboard network	The onboard network port is not integrated, and it can optionally support Gigabit/10 Gigabit network module (SIOM);
PCIEextension	Each node:2 *PCI-E 16half-height expansion slots ,supporting half-height device expansion ;
other ports	Each node: 2USB3.0,1 VGAinterface
power supply	Standard2200 W 1+1titanium redundant power supply
manage	Each node: onboardBMCmanagement module, supportIPMI2.0, provide11000Mbps RJ45management network port
CD-ROM/floppy disk drive	ExternalUSB DVD-ROM
Supported Operating Systems	Windows Server 201 6/2019 RHEL 7.3 Ubuntu 16.04 LTS Ubuntu 18.04 LTS
powered by	Full voltage range adaptive server professional power supply,115V/60Hz,230V/50Hzadaptive ;
physical size	(LWH):7 74 mm4 38 mm88mm;support19-inch standard cabinet, net weight about3 2.7 KG
Environment and Specifications
ambient temperature	Operating10°C to35°C Non-operating-40°C to+ 60 °Cambient
Relative humidity	95%non-operating, non- condensing at25°Cto30°C
highest altitude	3000m
Safety Standards (China)	CCC

Service and Support

PowerLeader provides nationwide joint warranty, and PowerLeader 's professional after-sales service outlets across the country provide "one-stop" service response and support.

- 3-year limited on-site warranty and on-site support

- 4008-870-872 hotline response and support

For more information: please visit: http://en.powerleader.com.cn/

Correspondence address: 16th Floor, Building B, Building 7, Baoneng Technology Park, No. 1 Qingxiang Road, Longhua District, Shenzhen

PowerLeader reserves the right to change product specifications or other product information (including but not limited to product weight, appearance, size or other physical factors) without notice; the information mentioned in this article may change due to product upgrades or other reasons. resulting in changes without prior notice. The product pictures involved in this article are subject to the actual product.
